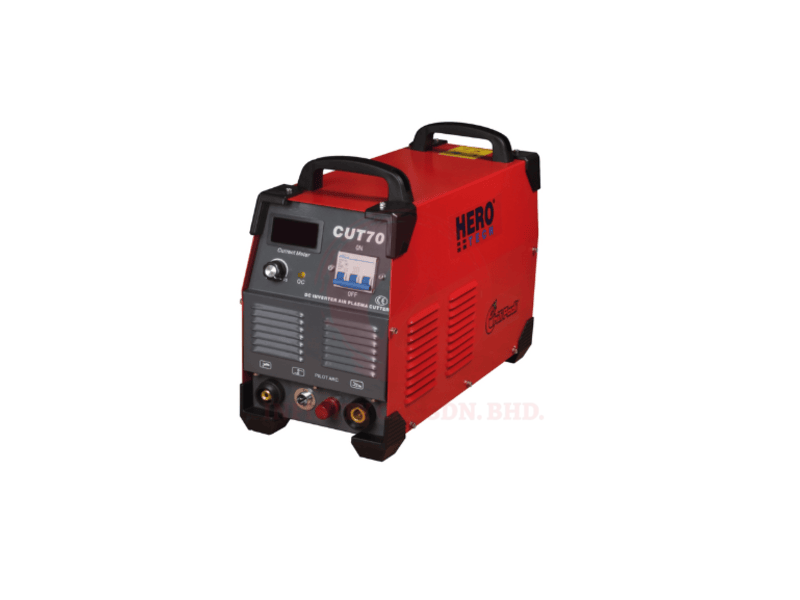

HERO TECH Inventer Plasma Cutting Machine CUT-70

HERO TECH Inventer Plasma Cutting Machine CUT-70

  • Increased cutting capacity, cutting speed increased 1.8 times.
  • Effective and economical cutting capacity both in speed and thickness.
  • Able to cut stainless steel, carbon steel, alloy steel, copper, and aluminium.
  • Users low-cost compressed air.
  • Come with accessories :
    • JW-72 Plasma Cutting Torch Complete Set
    • Eart Clamp with cable and fitting
    • JW-72 Electrode Tip
    • JW-72 Cutting Tip (1.0 mm)

Product Description


Specification UNIT CUT-70
Input Voltage VAC 415, 3Ø, 50/60Hz
Rated Voltage % ±15
Relate Input Power KVA 11
Rated Duty Cycle % 60
Efficiency % 85
Power Factor % 93
Output Current ADC 20 - 60
Output Voltage VDC 108
Open Circuit Voltage VDC 240
Air Flow M / min 0.25
Air Pre-Flow sec 0.1
Max. Cutting Thickness mm 25
Perfect Cutting Thickness mm 12
Control - STANDARD
Arc Starting - No-contact arc starting
Insulation Class LEVEL B
IP Rating LEVEL IP23
Dimension (W*D*H) mm 650 * 330 * 430
Weight KG 24


Specification UNIT CUT-70
Input Voltage VAC 415, 3Ø, 50/60Hz
Rated Voltage % ±15
Relate Input Power KVA 11
Rated Duty Cycle % 60
Efficiency % 85
Power Factor % 93
Output Current ADC 20 - 60
Output Voltage VDC 108
Open Circuit Voltage VDC 240
Air Flow M / min 0.25
Air Pre-Flow sec 0.1
Max. Cutting Thickness mm 25
Perfect Cutting Thickness mm 12
Control - STANDARD
Arc Starting - No-contact arc starting
Insulation Class LEVEL B
IP Rating LEVEL IP23
Dimension (W*D*H) mm 650 * 330 * 430
Weight KG 24
