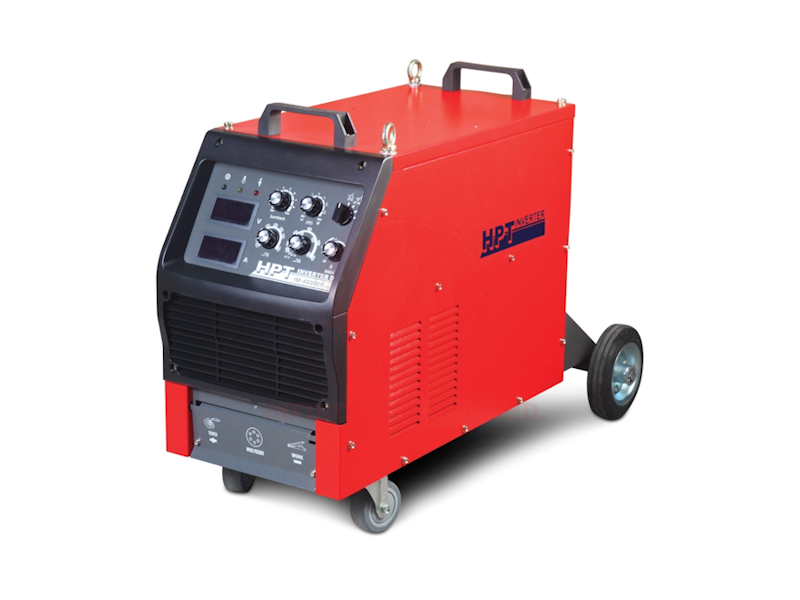

- Mix gas ready.
- Precise wire feed speed.
- Thermostatic control protection.
- Max cooling efficiency.
- Proven IGBT design.
- Increase weldability
|
Product Description
 |
| |
| Specification |
UNIT |
IM4000EF |
| Input Voltage |
VAC |
415, 3Ø, 50/60Hz |
| Rated Voltage |
% |
±15 |
| Rated Input |
KVA/KW |
18.5/13.11 |
| Output Current |
ADC |
50-400 |
| Output Voltage |
VDC |
16.5-34 |
| Open Circuit Voltage |
V |
70 |
| Duty Cycle at 10min/40°C |
% |
70 |
| Max Output Current |
ADC |
500 |
| Wire Diameter |
Ø |
0.8/1.0/1.2 |
| Pre-Flow Time |
Sec |
0.5 |
| Post-Flow Time |
Sec |
7 |
| Min Material Thickness |
mm |
0.8< |
| Insulation Class |
Level |
H |
| IP Rating |
Level |
IP21S |
| Dimension (W*D*H) |
mm |
302*610*455 |
| Weight |
Kg |
46 |
|
| |
| Specifications |
Unit |
Wire Feeder |
| Input Voltage |
VDC |
24 |
| Wire Size Range |
MM |
0.8-1.6 |
| Wire Feed Speed |
M/min |
1.5-18 |
| Dimension (W*D*H) |
mm |
205*480*300 |
| Weight |
KG |
15.8 |
|
|
| |
|
| |
| Specification |
UNIT |
IM4000EF |
| Input Voltage |
VAC |
415, 3Ø, 50/60Hz |
| Rated Voltage |
% |
±15 |
| Rated Input |
KVA/KW |
18.5/13.11 |
| Output Current |
ADC |
50-400 |
| Output Voltage |
VDC |
16.5-34 |
| Open Circuit Voltage |
V |
70 |
| Duty Cycle at 10min/40°C |
% |
70 |
| Max Output Current |
ADC |
500 |
| Wire Diameter |
Ø |
0.8/1.0/1.2 |
| Pre-Flow Time |
Sec |
0.5 |
| Post-Flow Time |
Sec |
7 |
| Min Material Thickness |
mm |
0.8< |
| Insulation Class |
Level |
H |
| IP Rating |
Level |
IP21S |
| Dimension (W*D*H) |
mm |
302*610*455 |
| Weight |
Kg |
46 |
|
| |
| Specifications |
Unit |
Wire Feeder |
| Input Voltage |
VDC |
24 |
| Wire Size Range |
MM |
0.8-1.6 |
| Wire Feed Speed |
M/min |
1.5-18 |
| Dimension (W*D*H) |
mm |
205*480*300 |
| Weight |
KG |
15.8 |
|
|
|
| |
