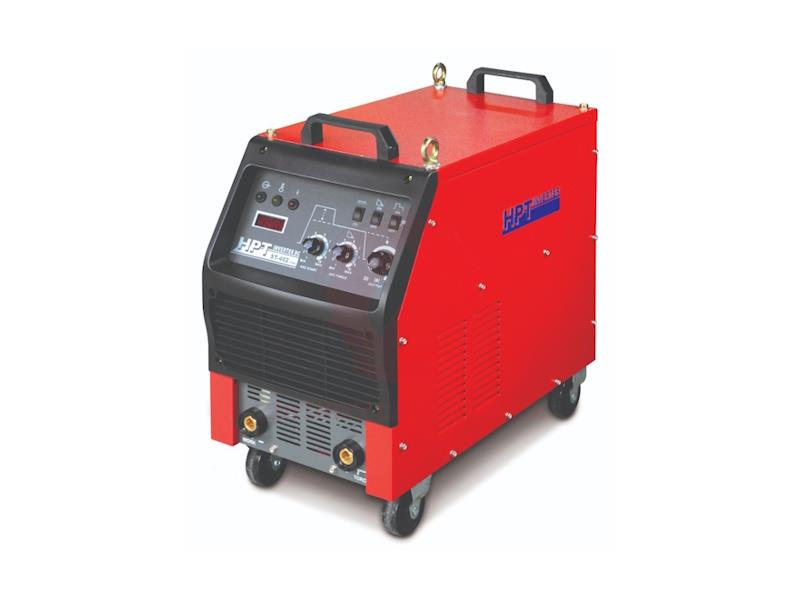

Stick Welding Machine ST-402

Stick Welding Machine ST-402

  • Portable.
  • Thermostatic control protection.
  • Max cooling efficiency.
  • Proven IGBT design.
  • Increase weldability

Product Description


Specification UNIT ST-402
Rated Input Voltage VAC 415, 3Ø, 50/60Hz
Rated Voltage % ±15
Rated Input Power KVA/KW 20/18
Rated Output Current ADC 20-400
Rated Output Voltage VDC 20.8-36
Rated Duty Cycle % 60 at 40°C/10 min
Open Circuit Voltage VDC 70
Efficiency % 85
Power Factor Ø 0.90
Isolation Class Level H
Degree of Protection Level IP21S
Dimension (W*D*H) mm 300*655*537
Weight KG 32


Specification UNIT ST-402
Rated Input Voltage VAC 415, 3Ø, 50/60Hz
Rated Voltage % ±15
Rated Input Power KVA/KW 20/18
Rated Output Current ADC 20-400
Rated Output Voltage VDC 20.8-36
Rated Duty Cycle % 60 at 40°C/10 min
Open Circuit Voltage VDC 70
Efficiency % 85
Power Factor Ø 0.90
Isolation Class Level H
Degree of Protection Level IP21S
Dimension (W*D*H) mm 300*655*537
Weight KG 32
