HERO TECH Inventer Plasma Cutting Machine CUT-70

HERO TECH Inventer Plasma Cutting Machine CUT-70

  • Increased cutting capacity, cutting speed increased 1.8 times.
  • Effective and economical cutting capacity both in speed and thickness.
  • Able to cut stainless steel, carbon steel, alloy steel, copper, and aluminium.
  • Users low-cost compressed air.
  • Come with accessories :
    • JW-72 Plasma Cutting Torch Complete Set
    • Eart Clamp with cable and fitting
    • JW-72 Electrode Tip
    • JW-72 Cutting Tip (1.0 mm)

Product Description


Specification UNIT CUT-70
Input Voltage VAC 415, 3Ø, 50/60Hz
Rated Voltage % ±15
Relate Input Power KVA 11
Rated Duty Cycle % 60
Efficiency % 85
Power Factor % 93
Output Current ADC 20 - 60
Output Voltage VDC 108
Open Circuit Voltage VDC 240
Air Flow M / min 0.25
Air Pre-Flow sec 0.1
Max. Cutting Thickness mm 25
Perfect Cutting Thickness mm 12
Control - STANDARD
Arc Starting - No-contact arc starting
Insulation Class LEVEL B
IP Rating LEVEL IP23
Dimension (W*D*H) mm 650 * 330 * 430
Weight KG 24


Specification UNIT CUT-70
Input Voltage VAC 415, 3Ø, 50/60Hz
Rated Voltage % ±15
Relate Input Power KVA 11
Rated Duty Cycle % 60
Efficiency % 85
Power Factor % 93
Output Current ADC 20 - 60
Output Voltage VDC 108
Open Circuit Voltage VDC 240
Air Flow M / min 0.25
Air Pre-Flow sec 0.1
Max. Cutting Thickness mm 25
Perfect Cutting Thickness mm 12
Control - STANDARD
Arc Starting - No-contact arc starting
Insulation Class LEVEL B
IP Rating LEVEL IP23
Dimension (W*D*H) mm 650 * 330 * 430
Weight KG 24


Frequently Purchase Together

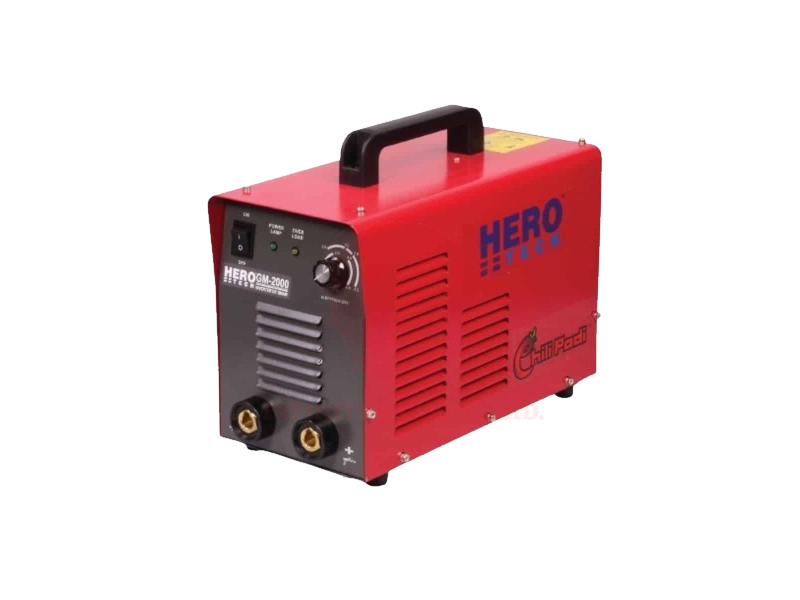

Inverter Welding Machine GM2000
Inverter Welding Machine GM2000
  • Small and lightweight, portable and durable, reliable and economical.
  • Good performance with automactic compensation for voltage fluctuation.
  • Stable arc, deep molten pool, perfect welding shaping.
  • Low consumption with low open energy wastage.
  • Suitable for welding stainless steel, carbon steel and other metal.
  • Voltage Reduction Device (VRD) safety feature included as standard.
High Pressure High Flow Regulator (Laser Gas)
High Pressure High Flow Regulator (Laser Gas)
  • High pressure and high flow.
  • Body and housing cap are machined from class "A" brass.
  • Special for laser gas machine.
  • Sintered bronze inlet filter.
  • 2 gauges for easy reading.
  • Regulators verified by ECM, European standard EN ISO 2503:2009 and related to CE Directive 2014/68/EU (Pressure Equipment).
High Pressure Nitrogen Piston Regulator
High Pressure Nitrogen Piston Regulator
  • High Pressure Nitrogen Piston Regulators feature a reliable piston design for precise gas control at high inlet and delivery pressures rating up to 4000 PSIG.
  • Piston type construction.
  • Body and housing cap are machined from class "A" brass.
  • Deirin cap bushing for smooth adjustments.
  • Sintered bronze inlet filter.
  • 2 - 1/2" gauges for easy reading.
  • Regulators verified by ECM, European standard EN ISO 2503:2009 and related to CE Directive 2014/68/EU (Pressure Equipment).
Ace Welding Torch
Ace Welding Torch
  • Both gas cooled and water cooled types available
  • Rated cyclic duration factor: 60%
  • Wide range of models available from 160A to 500A
  • Angles: 0, 65, 75, 85 degrees available. For WP series, the angle can be adjustable
  • New design, equipped with arc flow knob, can adjust gas flow freely
Gas Nozzle MB15,24 PANA 350 & 500
Gas Nozzle MB15,24 PANA 350 & 500
  • Mig Consumable
  • Mig Shield Cup
  • Suitable For MB15
  • Specially designed for protecting nozzle
  • torch to avoid scalded
PICASAFE 13” Full Leather Welding Glove(Red)
PICASAFE 13” Full Leather Welding Glove(Red)
  • Size : 13 inch
  • Red color
  • Thick cow skin leather materials
  • welding gloves, long length
  • Resistance to heat, cold, cut and scratches
  • Good grip in heavy duty work
  • Strong abrasion performance
  • Widely used in construction ,maintenance, agriculture and many other general heavy-duty industry
